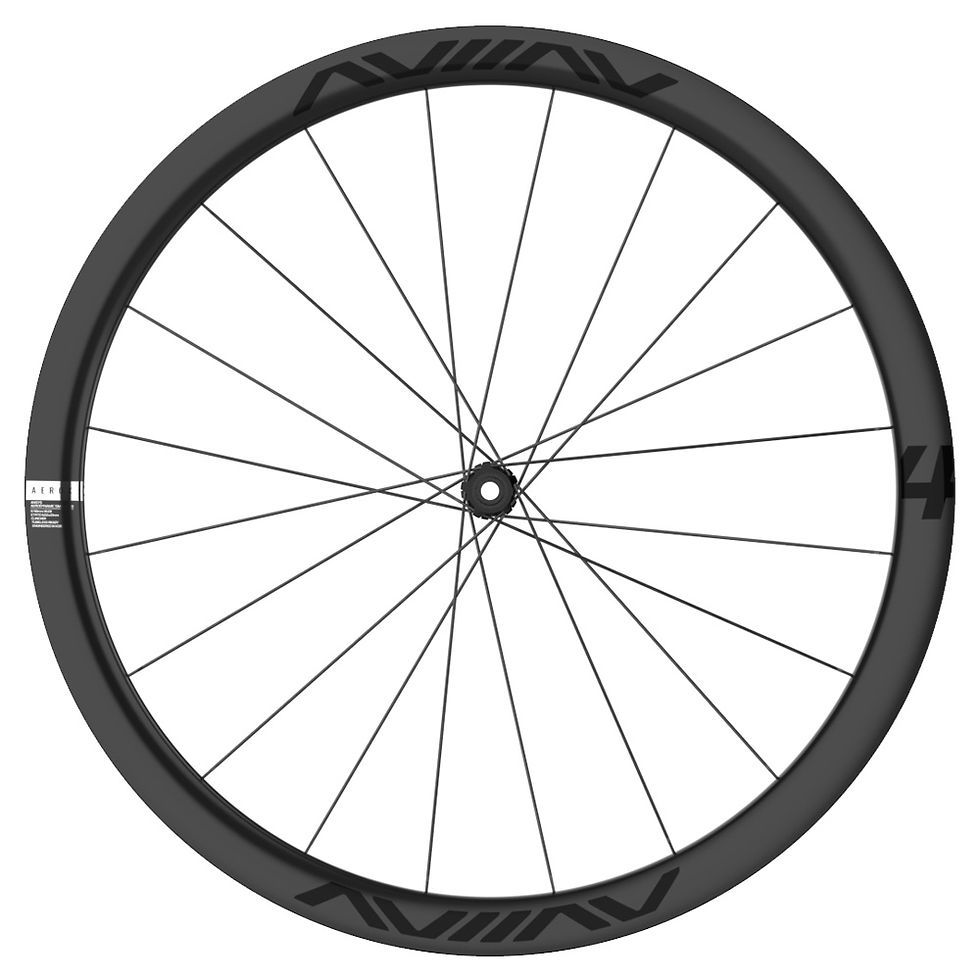

AEROX 4 CLINCHER TLR
Newly developed profile for optimal aerodynamic performance.
Excellent rolling performance clutch ratchet system hub.
Optimal weight reduction for low rotational inertia.
Hidden nipple that reduces air resistance.
A set of all those things.
AEROX.
NEW SHAPE, NEW RECORD, HIGHER PODIUM
Introducing the new AEROX, developed through aerodynamic optimization simulations. It has an average aerodynamic performance improvement of 7% compared to the past AEROX, and introduces a new carbon layup method to achieve faster and more overwhelming performance through nearly 11% weight reduction. In particular, the newly developed hub performs better as a wheel with the new rim.
MORE, WIDER, LIGHTER
Although the rim is wider than the past AEROX model, it is lighter in weight. The surprising weight of 1.37kg based on the 60mm standard, which is the most preferred, hides AVIIAV's unique technology.
IMPROVED AERODYNAMICS PERFORMANCE
Further improvement over the past model, the aero effect achieved an average aerodynamic performance improvement of 7% even for strong lateral winds. In particular, drag between 12.5 and 15 degrees shows up to 12% improvement. you are no longer afraid of the wind.
NEVER COMPROMISE STRENGTH
Most wheels lose proportional strength as they become lighter. However, AEROX's new carbon molding technology makes lighter rims, but has more strength for weight. In particular, it has a strong durability that will never break even with a 100J impact, double the energy of 50J based on the UCI test protocol, making it a wheel that can be used from professional to amateur riding.
DIFFERENT PROFILE, DIFFERENT SHAPE
The new AEROX The 40mm is an all-round shape and is designed to be used on all flat, uphill, and downhill courses, while the 60mm is a shape that maximizes aero performance and is designed for optimal performance on flat sprints and winding courses. 80mm is a design that maximizes cruising performance in time trials or completely flat terrain.
CLUTCH RATCHET SYSTEM
Instead of the existing pawl type ratchet, we have introduced a new clutch ratchet structure that shows excellent power transfer performance, making riding with loss-free torque possible in any situation. In particular, the ratchet gear, which is sold separately, can be replaced depending on the rider's preference.
NEW CERAMIC SYNCHRO HUB
Precisely machined AVIIAV CERAMIC SYNCHROTM hubs are the new standard for Aviab original hubs. The newly designed hub structure has no twisting or deformation even during rapid movements, and the bearings using zirconium ceramic balls provide near-zero resistance performance even at high speeds and transmit the rider's power to the ground.
FOR LESS DRAG
The new AEROX adopted a hidden nipple type spoke connection method to reduce air resistance by just 1g. In addition, SAPIM CX-RAY spokes, which have excellent aerodynamic performance, are used to minimize air resistance caused by the spokes when the wheel rotates.
HANDBUILD IN KOREA
AEROX is a product built in Korea by hands. Meet unparalleled finish and impressive service compared to other products in its class.
RIM: AEROX4 CLINCHER / TUBELESS READY
CARBON: TORAY T800 H / UIN-150A
SIZE: 700c
RIM DEPTH: 40mm
RIM WIDTH: 29mm(max) / 21mm(internal)
WEIGHT: 1250g (±3%)
FINISH: UD CARBON / HALF MATTE
HUB: AVIIAV CERAMIC SYNCHRO HUB
FREEHUB: SHIMANO 11,12 / CAMPY 11,12 / SRAM 12 XDR
SPOKE: SAPIM CX-RAY STRAIGHT-PULL
TENSTION: FRONT 1200-1400N / REAR 1200-1400N
PATTERN: FRONT 2-CROSS / REAR 2-CROSS
LIMITE: UNDER 110kg (INCLUDE BIKE)
BRAKE: CENTER-LOCK ROTOR TYPE
TIRE: 622x26c to 622x36c (622x28c BEST)
TUBELESS KIT: INCLUDED
WHEELBAG: INCLUDED
2 year warranty
*ROTOR IS NOT INCLUDED
*Tax exclusive
